Ultralight and easy to use
Up to 72 hours of monitoring
Easy-share with our CardioSpecialists
Reliable and accurate
About M5 vet

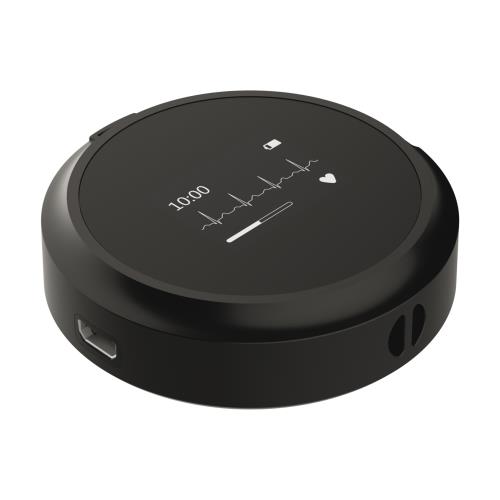

The M5 VET Holter ECG System is a compact, rechargeable digital ambulatory ECG recorder designed for continuous heart rhythm monitoring in veterinary patients.
Learn more

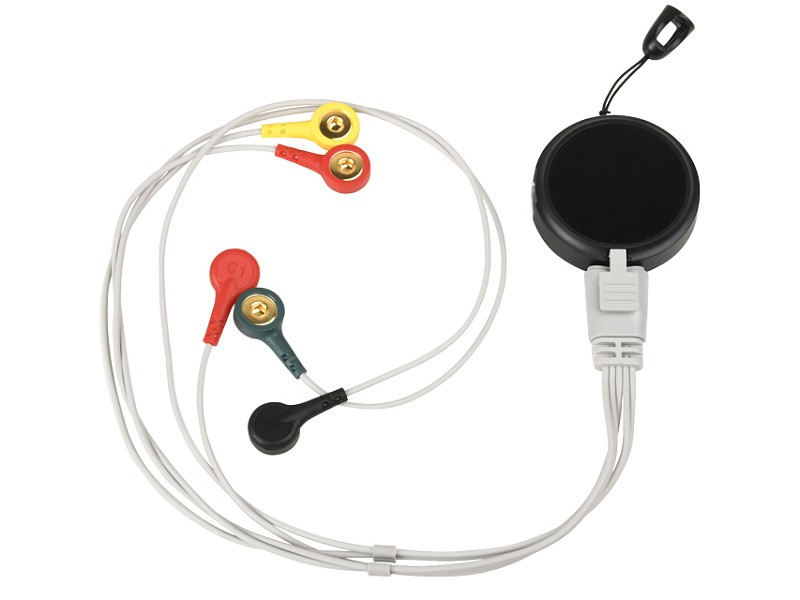

1 cable – 5 leads
5-lead configuration for high-quality ECG recording

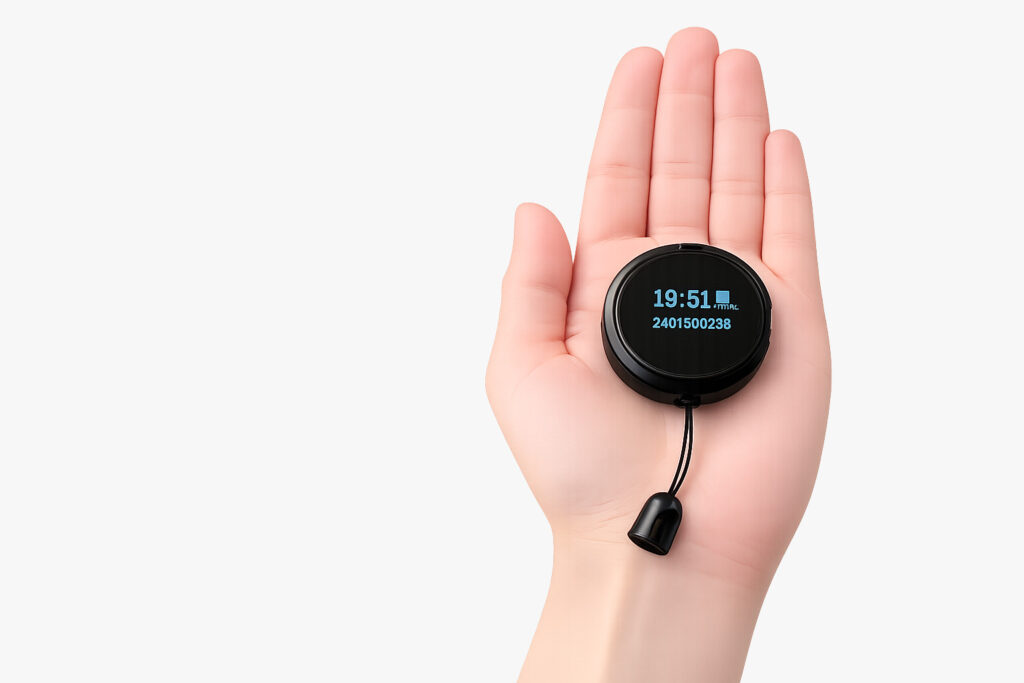

50 grams only
compact Ø 48 × 15.2 mm

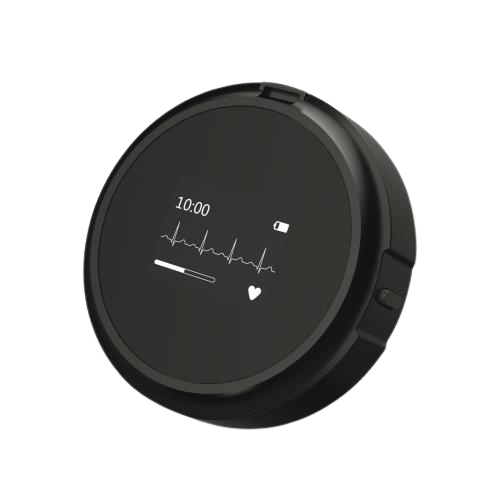

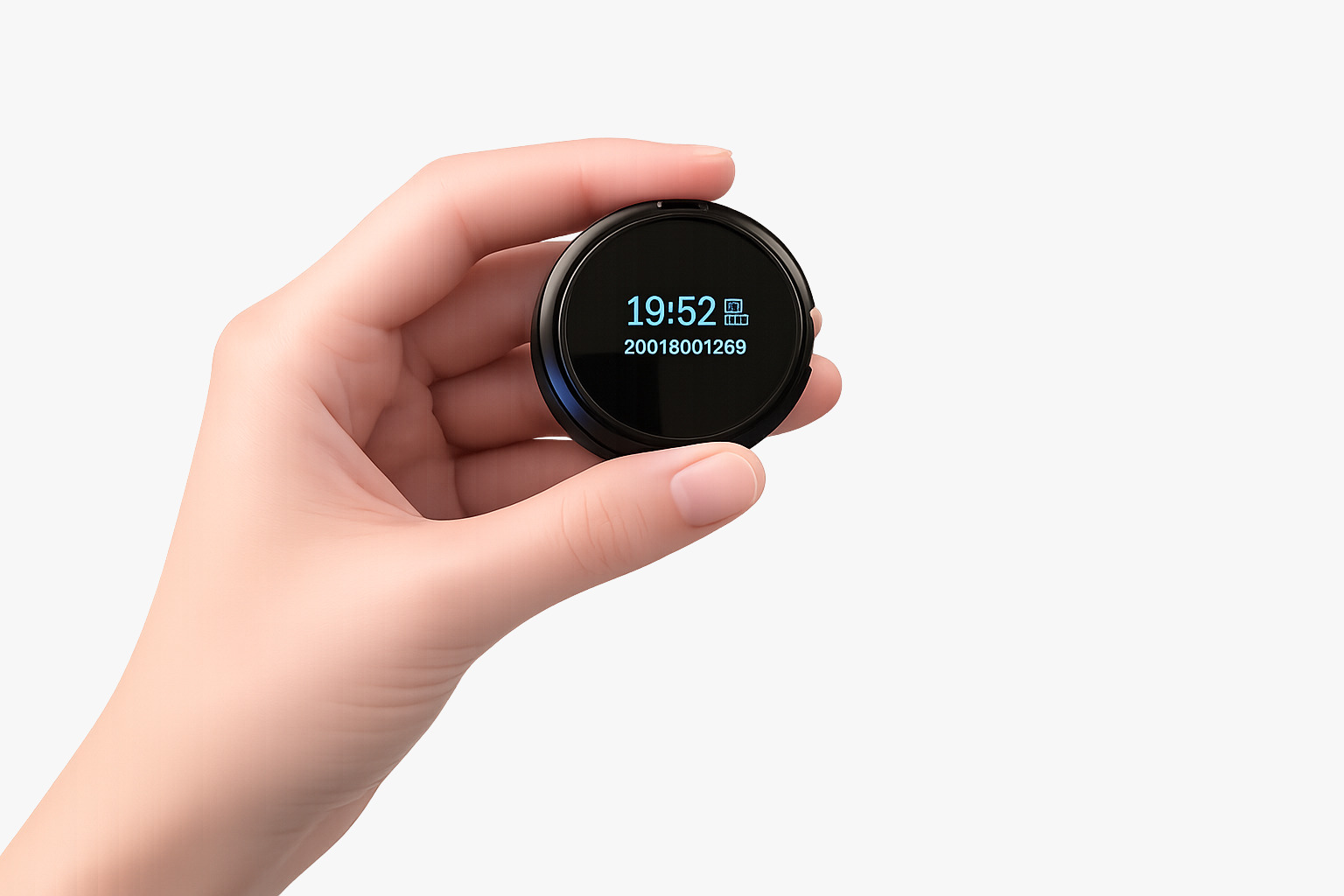

Real-time ECG on screen
To check connection anytime
USB port
For easy data transfer
Technical specs
ECG
Leads: 3/5 leads
Input impedance: ≥50 MΩ, 10 Hz
Input signal range: 10 mV (p-v)
CMRR: =120 dB
Bandwidth: 0.05–40 Hz
HEART RATE
ECG measurement range: 30–250 bpm, ± 2%
Resolution: 1 bpm
DEVICE
Power supply: rechargeable lithium-polymer battery, 3.8 V DC, 400 mAh
Charging time: 2 hours
Battery life: 72 hours, when fully charged
Voltage: 4.5–5.5 V DC
Dimensions: Ø 48 mm × 15.2 mm
Weight: 50 g

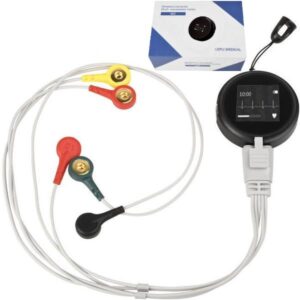

What’s in the box
- 5-lead patient cable with snap-on connector
- 20 disposable adult electrodes
- Mini HDMI cable
- Magnetic charging cable
- USB stick
- Quick start guide
- User manual
