Pocket-size
Free App
Evidence based
Ideal for trade visits
Easy everywhere
No need to move your patient
Record
anywhere
Share
with cardiologist or reporting centre
Get ECG report
for horse trading or competitions
Latest scientific papers
Spitale, D & Cicogna, M & Porciello, Francesco & Colonnelli, M & Caivano, Domenico. (2024)
USE OF A NOVEL SMARTPHONE-BASED SINGLE LEAD ELECTROCARDIOGRAM DEVICE IN CLINICAL PRACTICE TO EVALUATE HEART RYTHM IN HORSES
Pferdeheilkunde Equine Medicine. 40. 149-153. 10.21836/PEM20240207.
SIVE International Congress, Venice 2023.

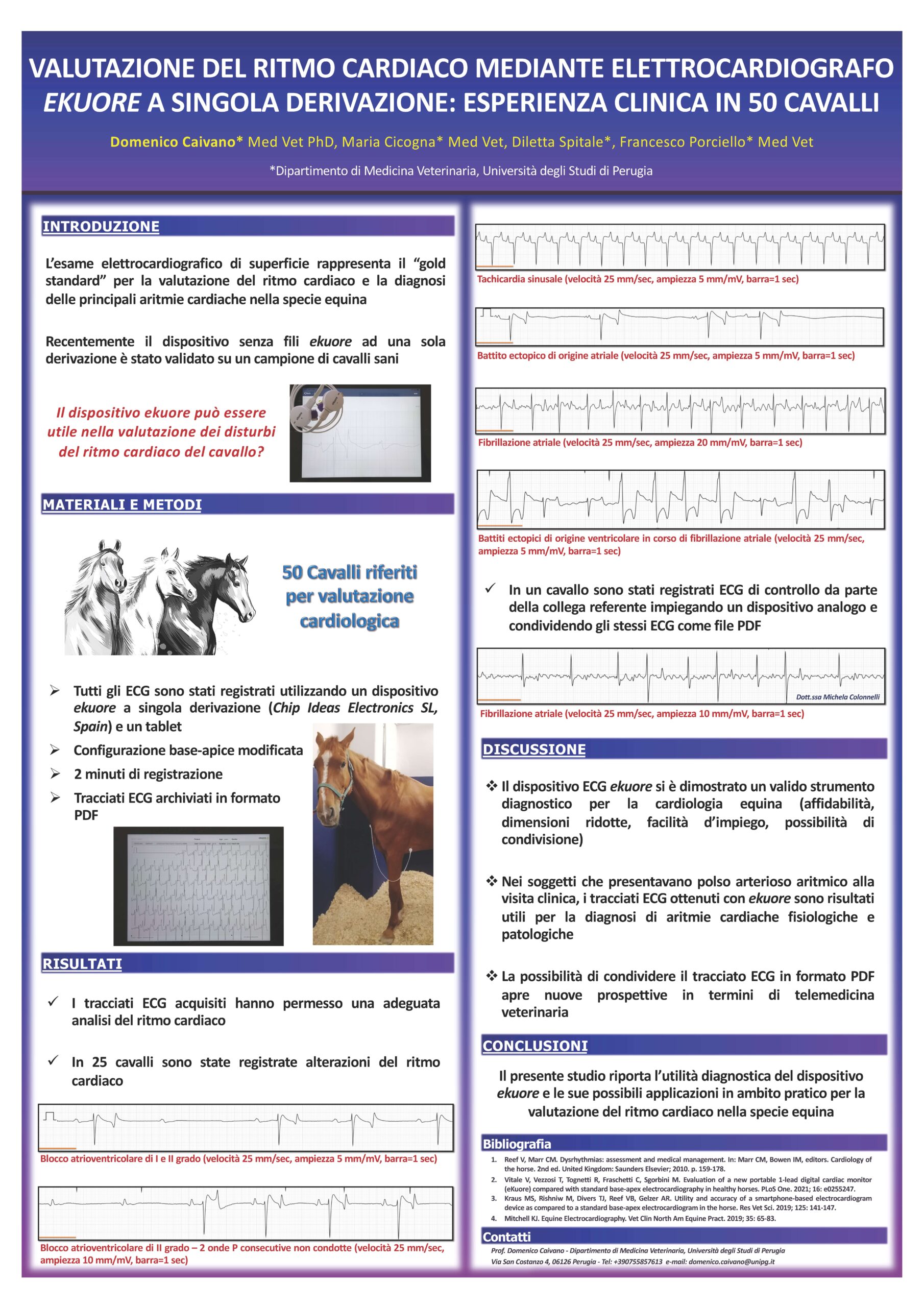

VALUTAZIONE DEL RITMO CARDIACO MEDIANTE ELETTROCARDIOGRAFO EKUORE A SINGOLA DERIVAZIONE: ESPERIENZA CLINICA IN 50 CAVALLI.
Domenico Caivano, Maria Cicogna, Diletta Spitale, Francesco Porciello
EVALUATION OF A NEW PORTABLE 1-LEAD DIGITAL CARDIAC MONITOR (EKUORE) COMPARED WITH STANDARD BASE-APEX ELECTROCARDIOGRAPHY IN HEALTHY HORSES.
Vitale V, Vezzosi T, Tognetti R, Fraschetti C, Sgorbini M (2021) PLoS ONE 16(8): e0255247. https://doi.org/10.1371/journal.pone.0255247

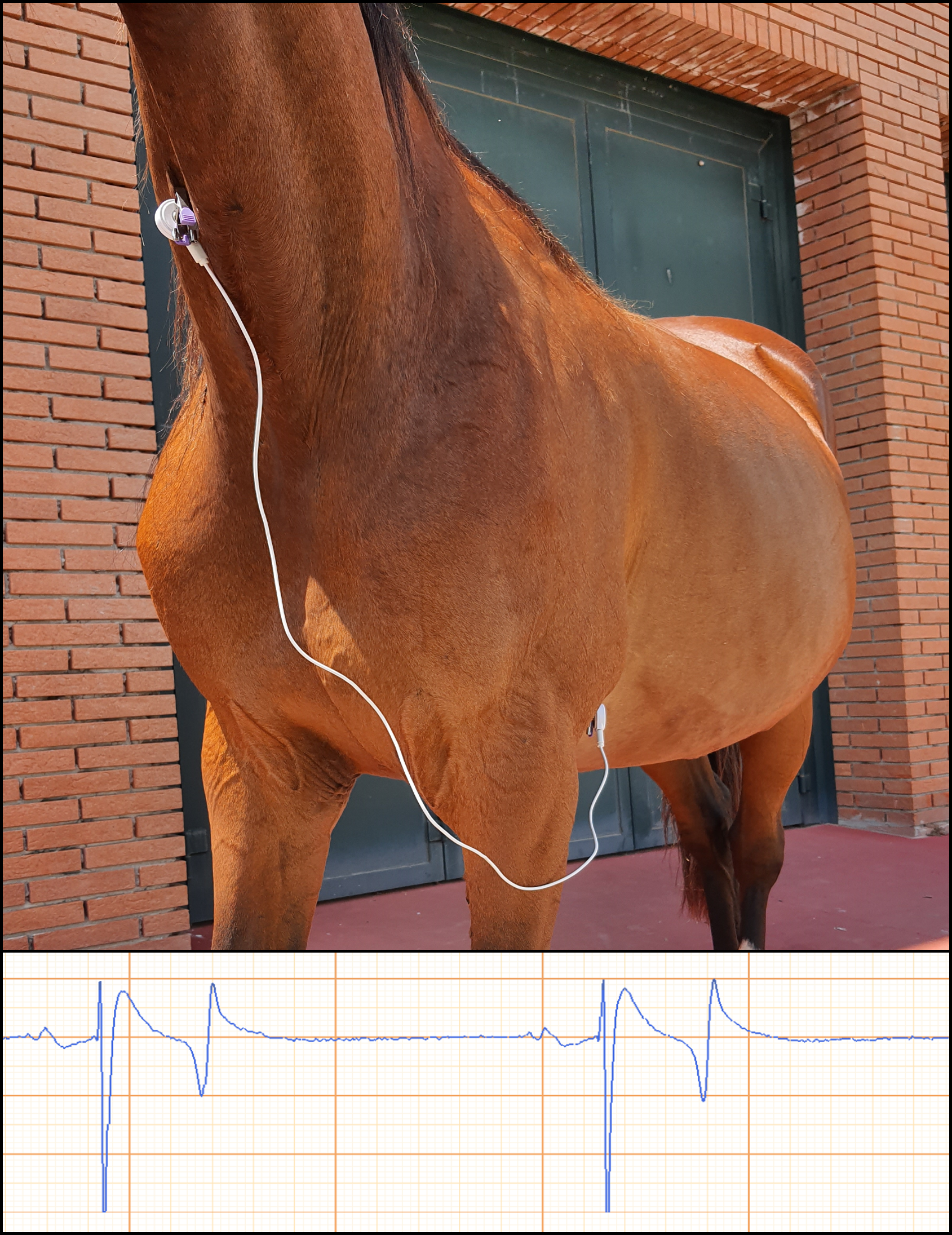

Standard base-apex (SBA) placement of the smartphone ECG (spECG) electrodes. Courtesy of Vitale V, Vezzosi T, Tognetti R, Fraschetti C, Sgorbini M (2021) PLoS ONE 16(8): e0255247.

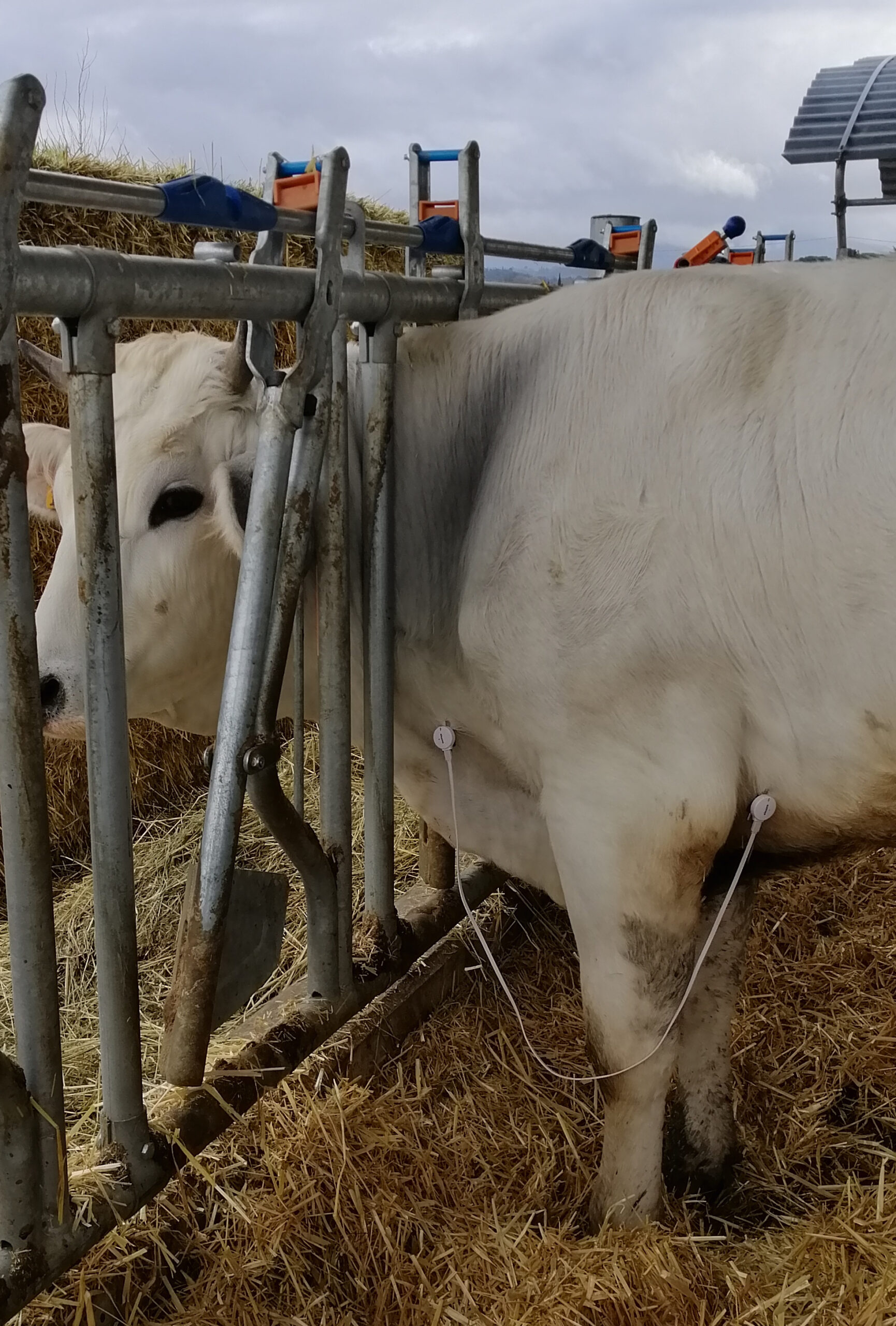

ATRIAL FIBRILLATION IN TWO HEALTHY CHIANINA COWS
Domenico Caivano, Maria Cicogna, Rocco PIsano,
Francesco Mosconi, Piero Boni.
“These devices allow to over-come the not-practical use of a standard ECG machine, cables,and electrodes in field. “
Courtesy of Prof. Caivano, MEDVET, Università di Perugia

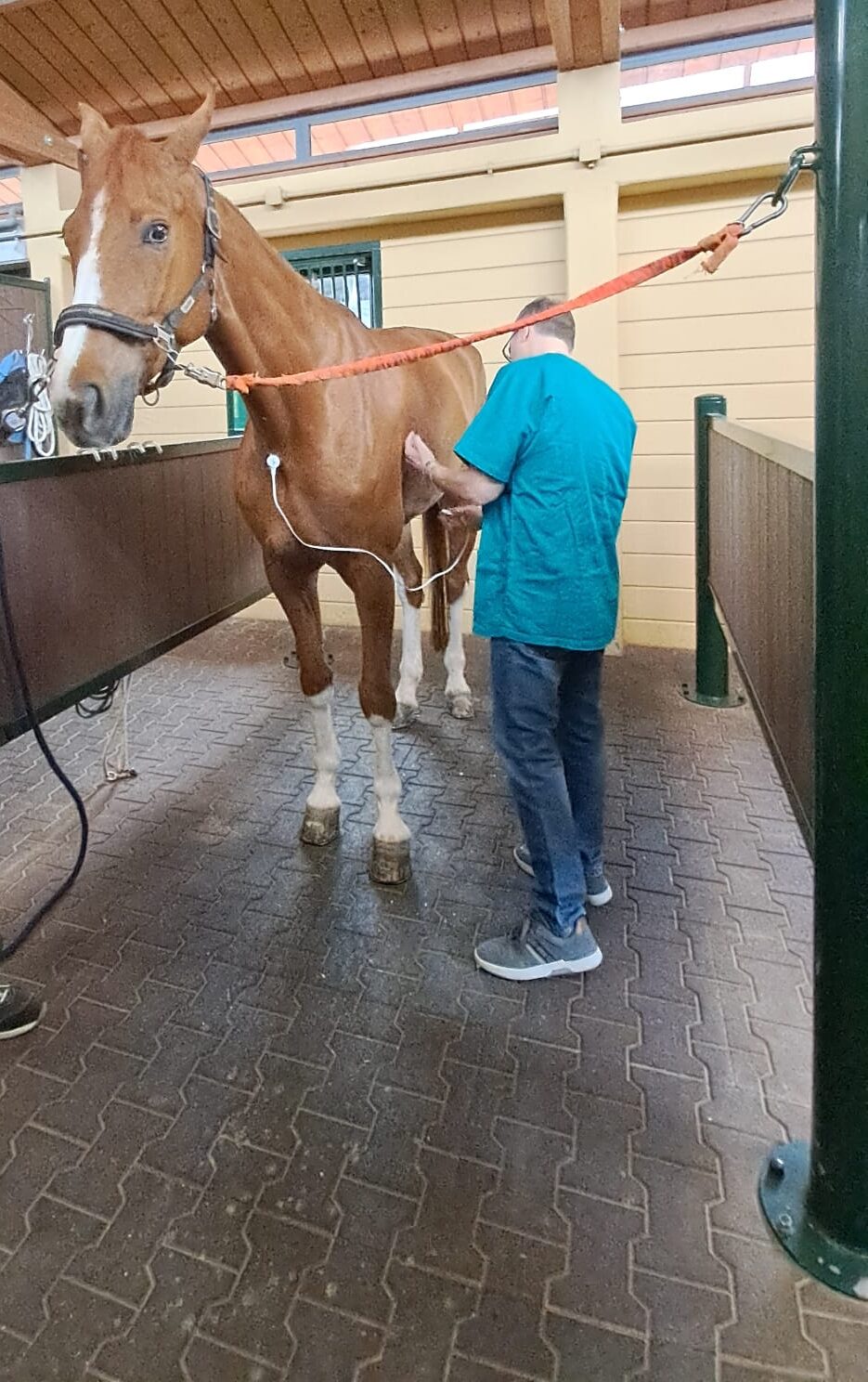

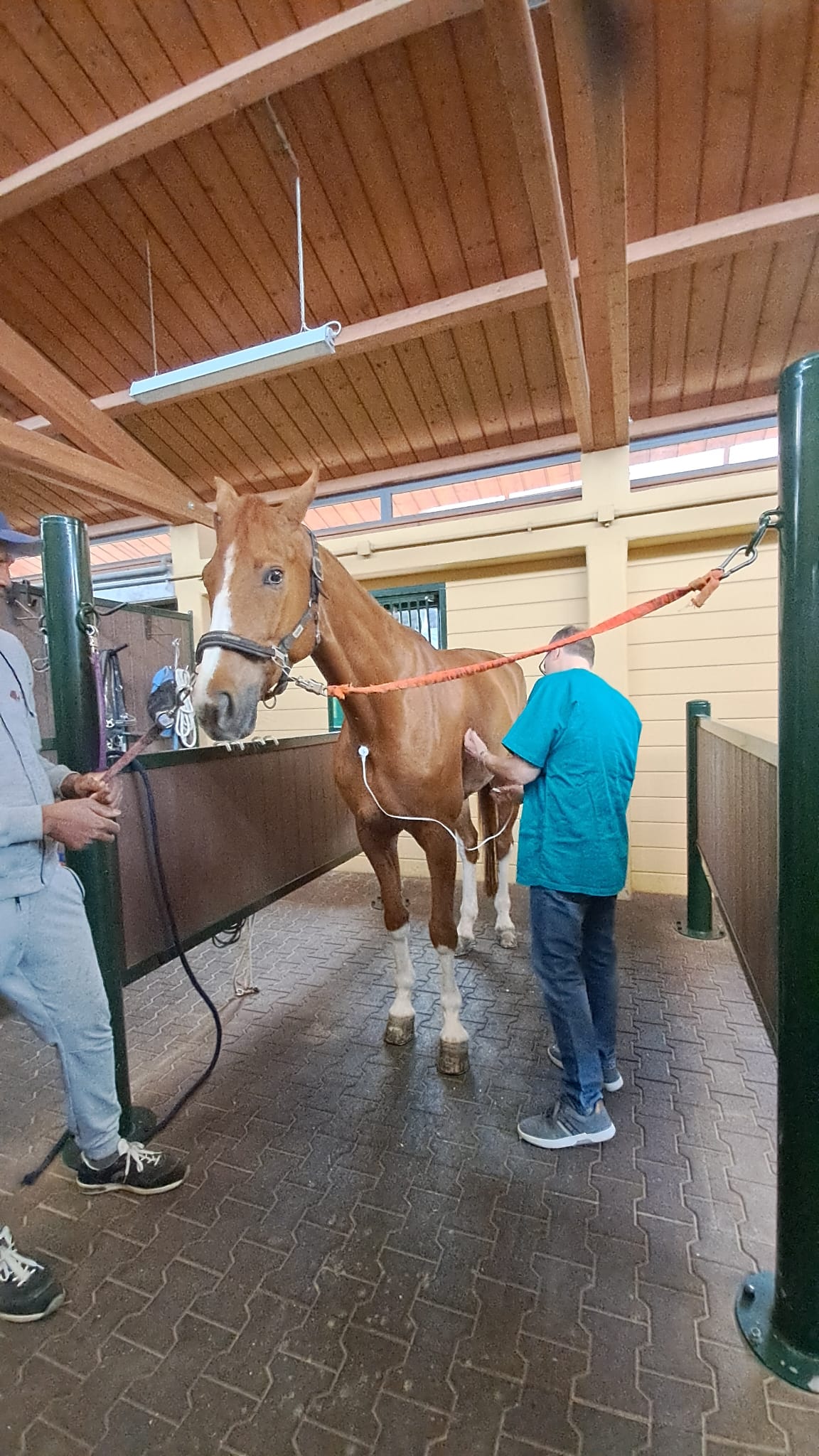

Easy application

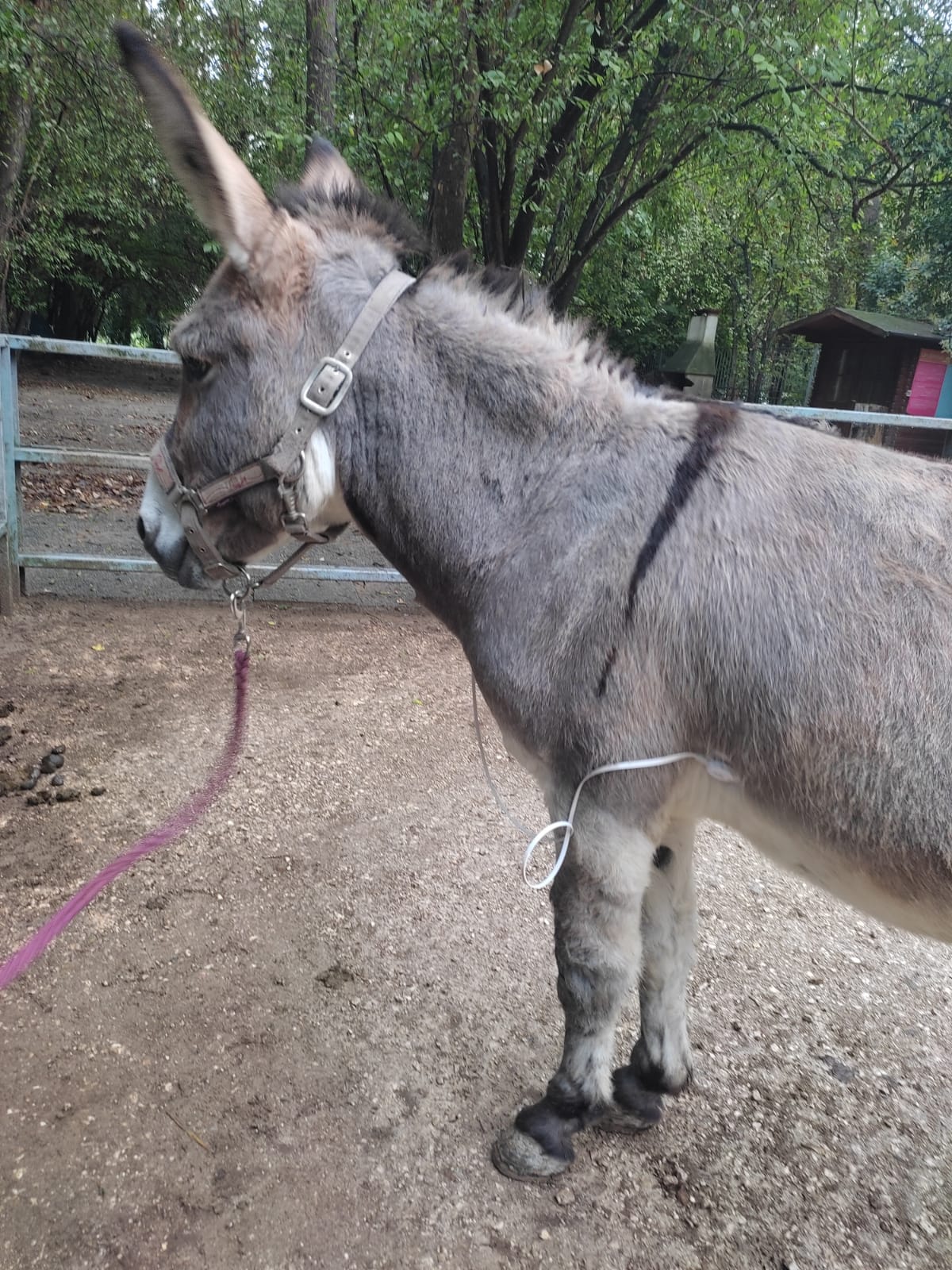

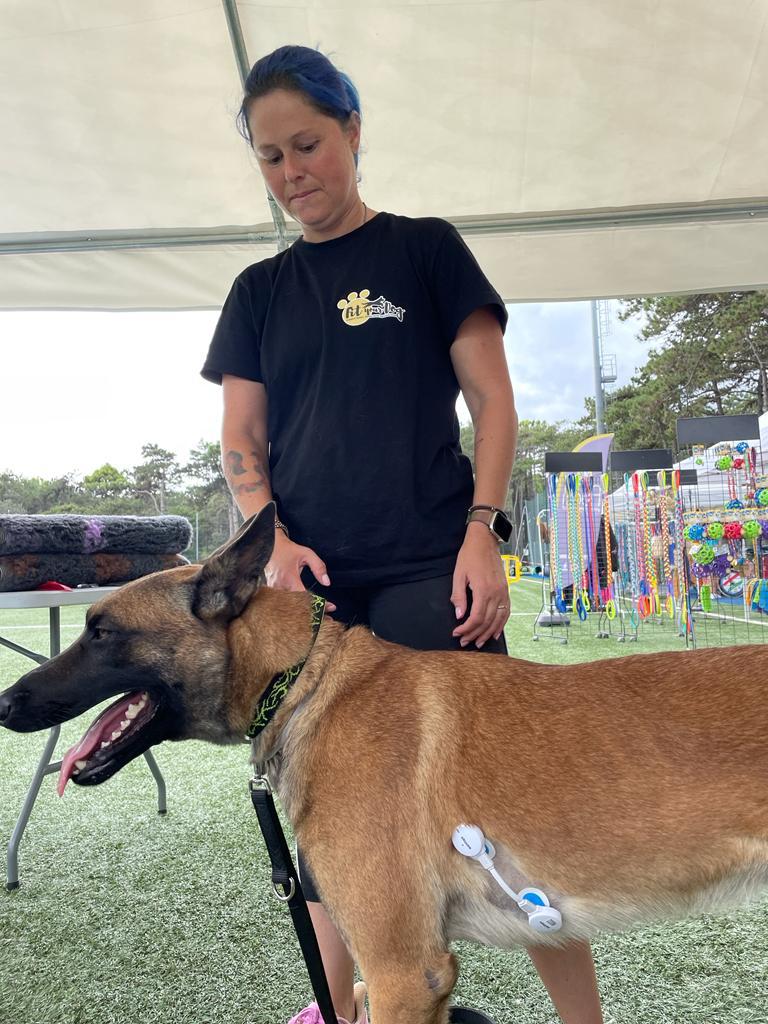

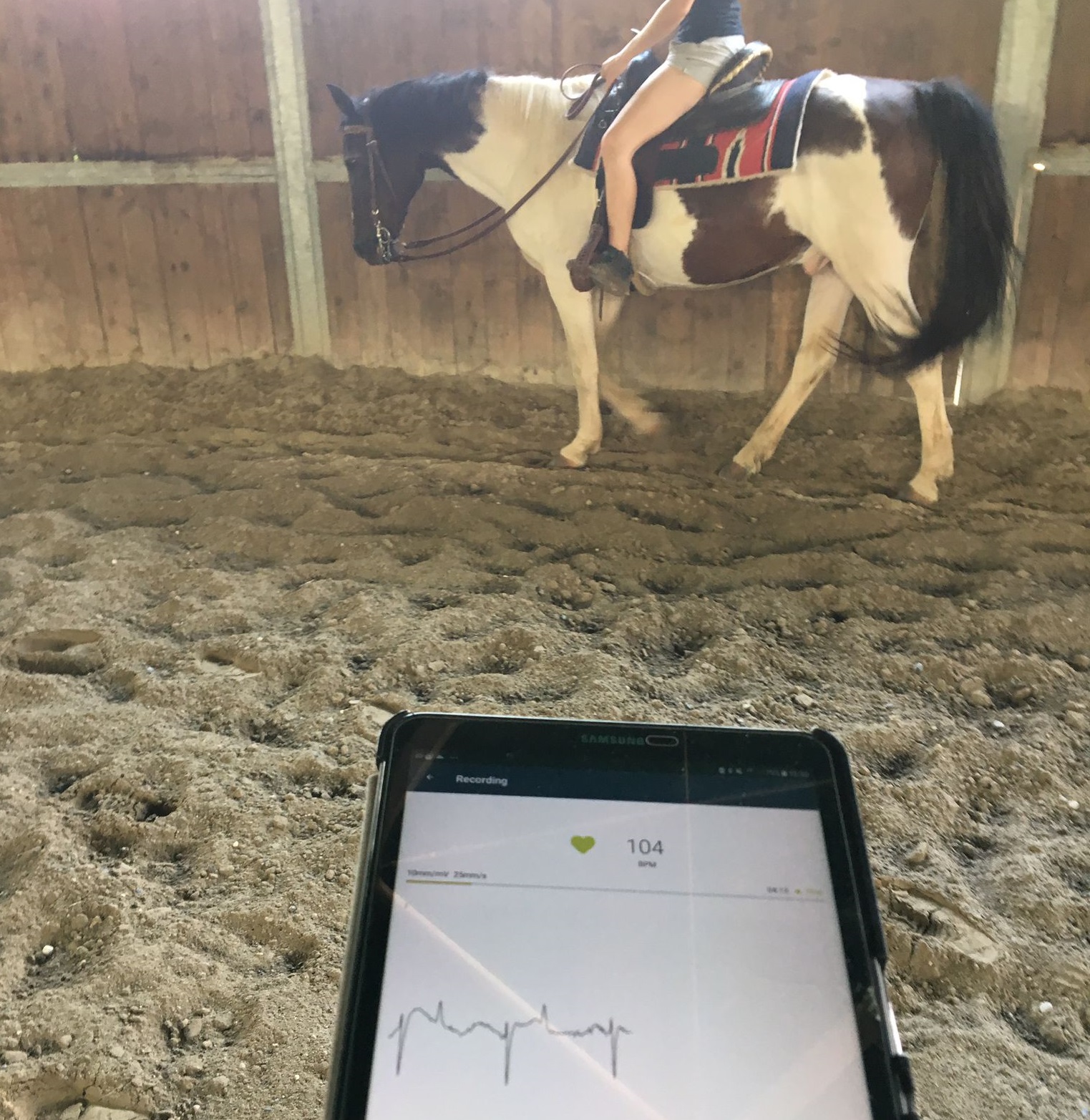

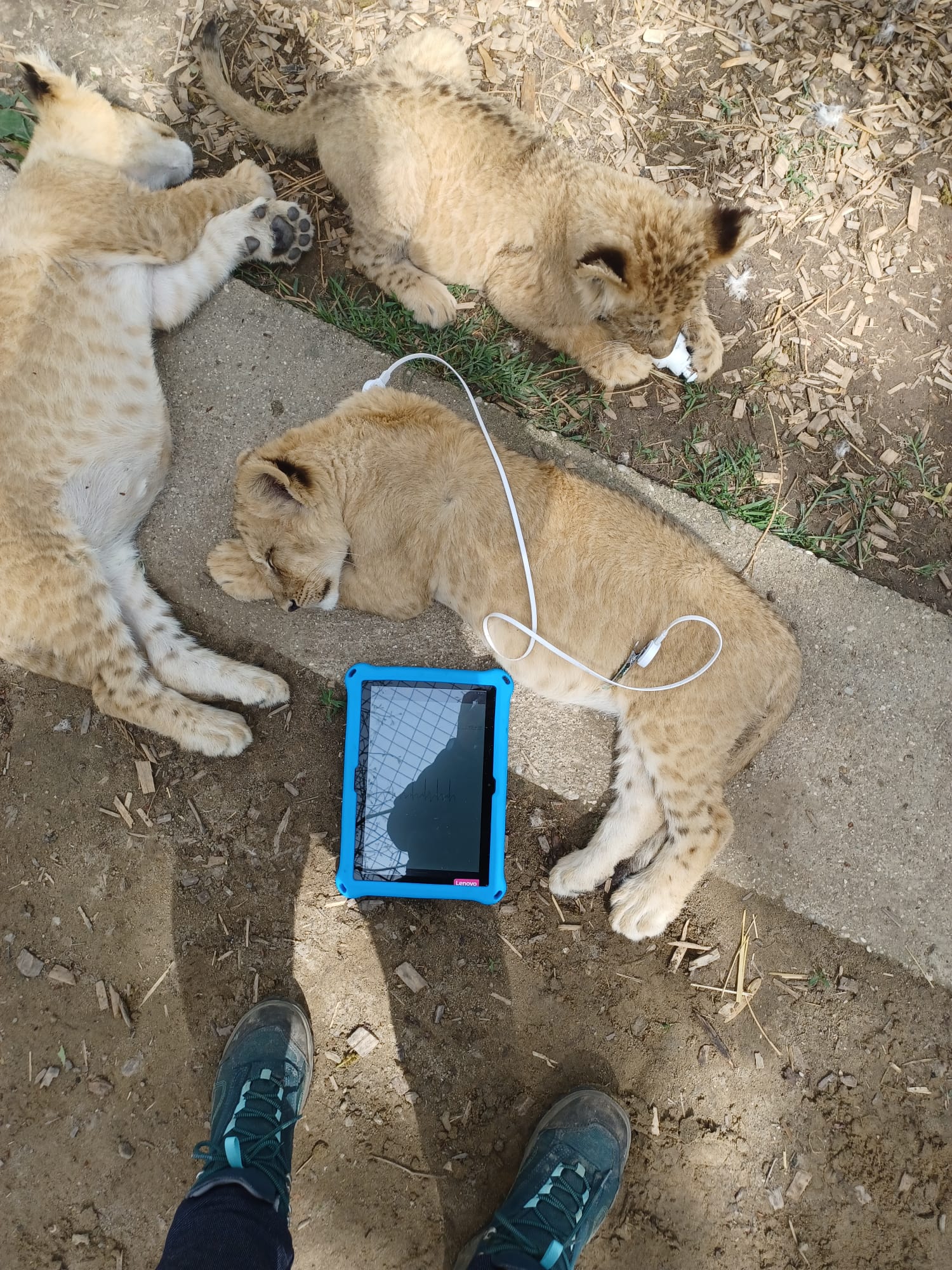

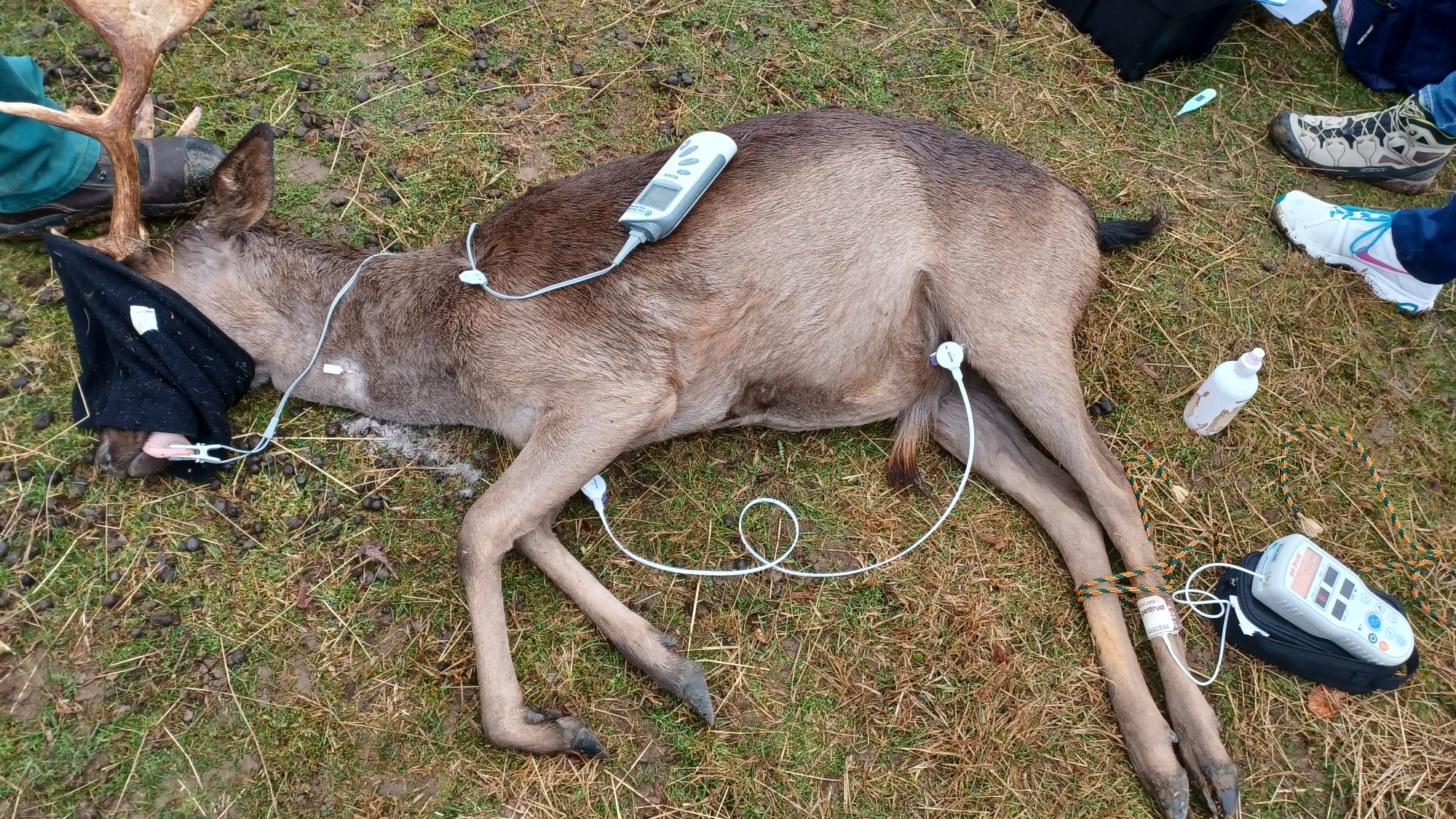

On resting and activity animals
Product details
What’s in the box
- Main module and Secondary module (electrodes + and -)
- Short USB connection cable
- Long USB connection cable
- 2 alligator clips
- USB C charging cable
- Instruction manual
Maintenance & accessories
- A dry cleaning cloth is recommended for cleaning.
- Do not use solvents or isopropyl alcohol, which may damage the paints.
- Spare alligator clip electrodes and adhesive patches available
Technical specs
Main module size
35mm x 12mm
Secondary module size
35mm x 12mm
Charging cable length
67mm y 1m
Weight
23 grams
Colour
White
Wireless communication
Bluetooth Class II (< 10m)
Consumption
50mW (trasmission signal)
Battery
Rechargeable lithium polymer battery (DC 3.7V, 180mAh)
Continuous operation time 48 hours
Charging time about 2 hours
Power supply 5V 0.5A
FAQs

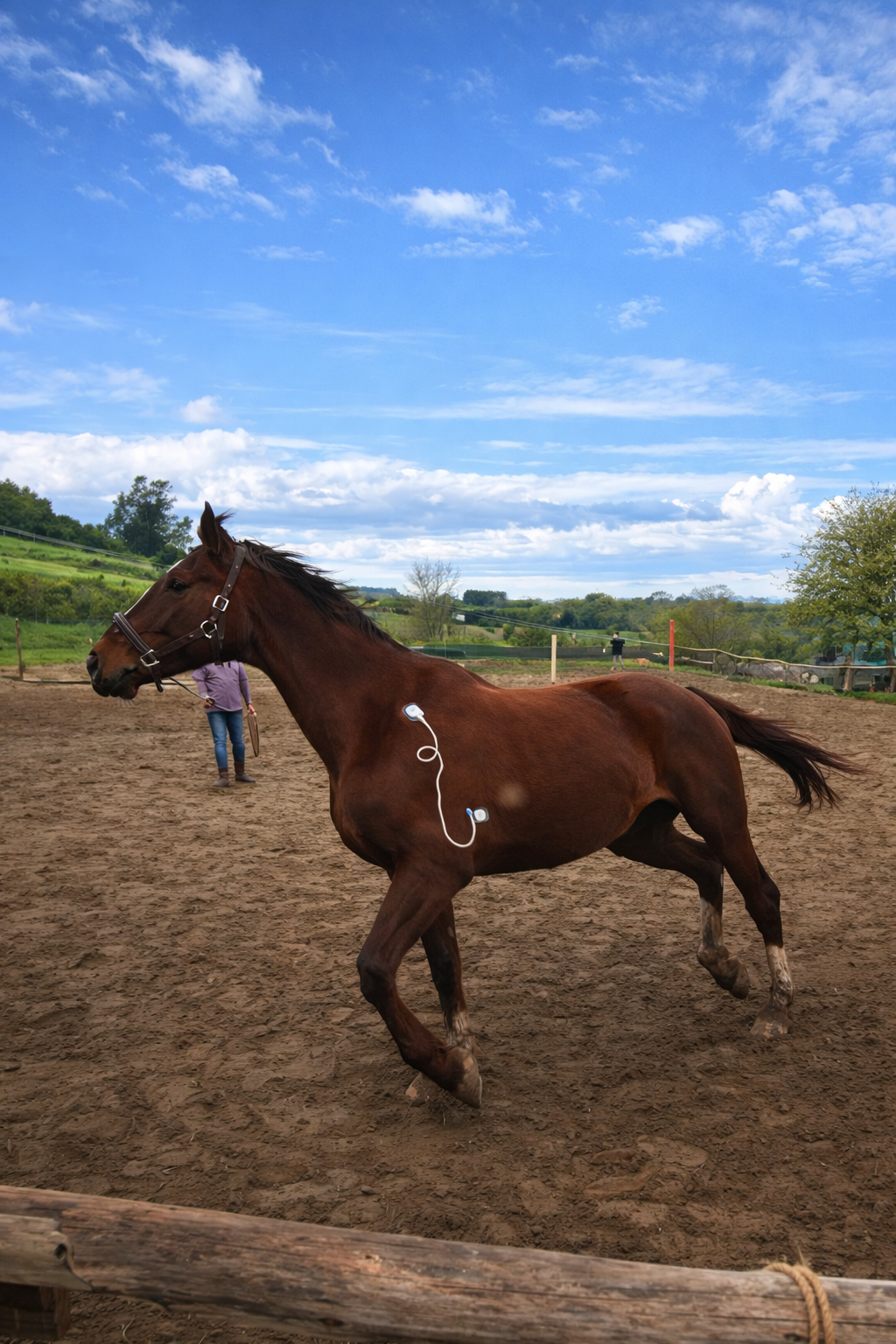

Can I use it on riding horses?
Yes, while it is primarily used on resting horses, Q1 is used during activity too. Make sure adhesive electrodes are firmly attached to your patient and not to exit bluetooth-coverage area (10 meters). Check this video!
What’s the difference with my old Ekuore1L?
With improved longlasting battery, Q1 allows you to save time by recording for over 72 hours of ECGs. With QUET ECG App, you can finally save long monitoring tracings.
How can I request an ECG report?
QUET ECG App > History > Select ECG >
>Insert patient information> send to server. IMPORTANT: your request will be processed only after payment is completed on this page. Your ECG report will be available on the “history section of the App once the report icon turns green
Why is a 30% battery required?
Q6 and Q1 are thought to record short ECGs as well as long monitoring and Holter tracings in the background of any smartphone or tablet. In order to do that, a fully charged device is required,
